- Size: 1
- Place of Origin: Shanghai
- Brand Name: YK
- Model Number: AR500 wear resistant steel plate in stock
- Weight: 30000.000 kg
Quick Details
- Standard: AISI, ASTM, BS, DIN, GB
- Grade: nm400
- Thickness: 3-45mm
- Place of Origin: Shanghai, China (Mainland)
- Model Number: nm400
- Type: Steel Plate
- Technique: Hot Rolled
- Application: Ship Plate
- Special Use: Wear Resistant Steel
- Width: 1500-2400mm
- Length: 6m-12m
- name: AR500 wear resistant steel plate
- thickness: 3-45mm
- width: 1500-2400mm
- length: 6m-12m
Packaging & Delivery
| Packaging Details: | Standard export package or as per client's requirements. |
|---|---|
| Delivery Detail: | Within 15-20 days after we receive deposit or L/C at sight. |
Specifications

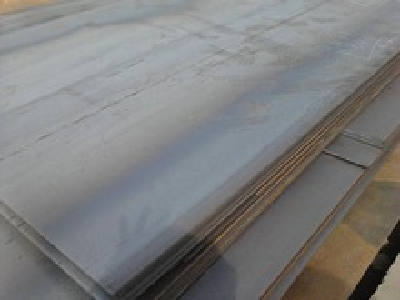

AR500 wear resistant steel platethickness 3-45mm
width:1500-2400mm
AR500 wear resistant steel plate in stock
Material: AR500, GB Mn13,DIN 1.3401,JIS SCMnH11 ,Z120Mn12,X120Mn12,ASTM A128 High Manganese Steel
We have stock. Welcome to contact us.
Standards:ASTM,JIS,GB,EN(DIN,BS,NF)Or as clients’ requirement.
Product Basic Information:
1.Chemical Composition and Mechanical Properties(In Quenched & Tempered State):
Chemical Composition | Mechanical Properties(In Quenched & Tempered State) | ||
C | 0.90-1.20 | Tensile strength(MPA) | ≥800MPa |
Si | 0.30-0.80 | Yield strength (MPA) | ----- |
Mn | 11.00-14.00 | Elongation(δ5/%) | ≥40 |
P | ≤ 0.035 | Reduction in Area (ψ/%) | ≥ 90 |
S | ≤ 0.030 | Hardness | >300 |
2. Product Application Areas:
O ur products have been used in all kinds of ar e as, such as aviation,aerospace,navigation,nuclear energy,chemical
industry,electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,
transportation, and medical instruments, etc.
3.Similar steel grade & equivalent steel materials :
USA | Japanese | Gemany | British | France | International | Chinese |
ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
A128 | SCMnH11 | X120Mn12 1.3401 | X120Mn12 1.3401 | Z120Mn12 1.3401 | ------ | Mn13 |
Product Sales Information:
Size | Thickness:1mm-500mm Length:500mm-6000mm |
Origin place | Made In China |
Delivery Condition | Hot rolled,cold drawn,forged |
Surface require | Black,grinding,bright,polish |
Heat treatment | Quenched,Tempered,annealed |
Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
Delivery time | In 10-50 days |
Trade Term | EXW,FOB,CIF |
Payments | T/T or L/C at sight |
Port | China main Port,such as shanghai,Dalian,Shenzhen port. |
MOQ | 100kg |
Company Main Products:
Alloy Steel | 4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6, 1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236, |
Tool Steel | H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2 |
Bearing Steel | GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50 |
Spring Steel | 9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159 |
Stainless Steel | 321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057, |
